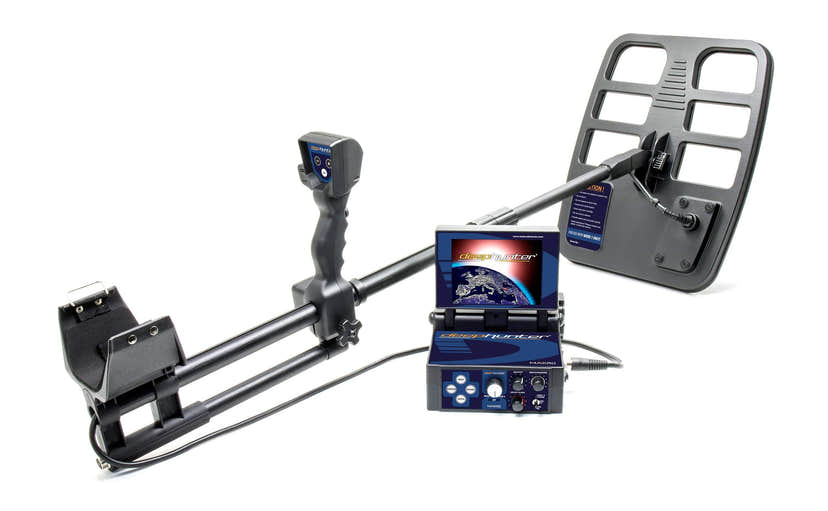

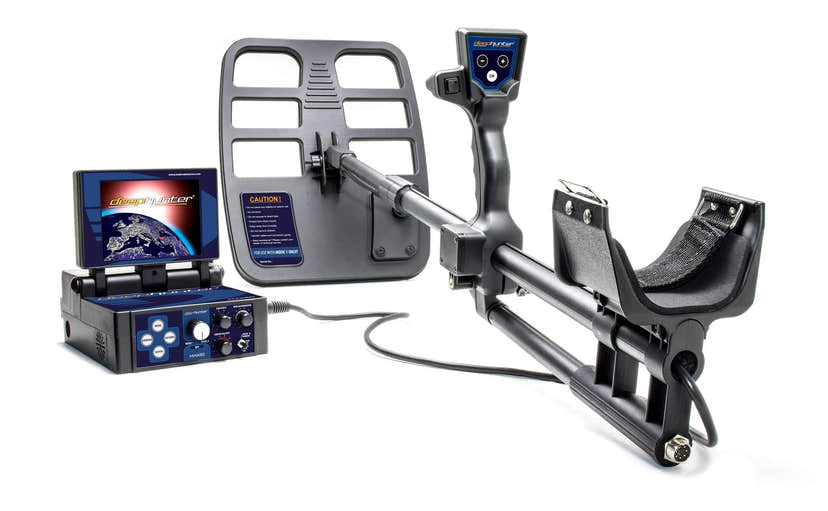

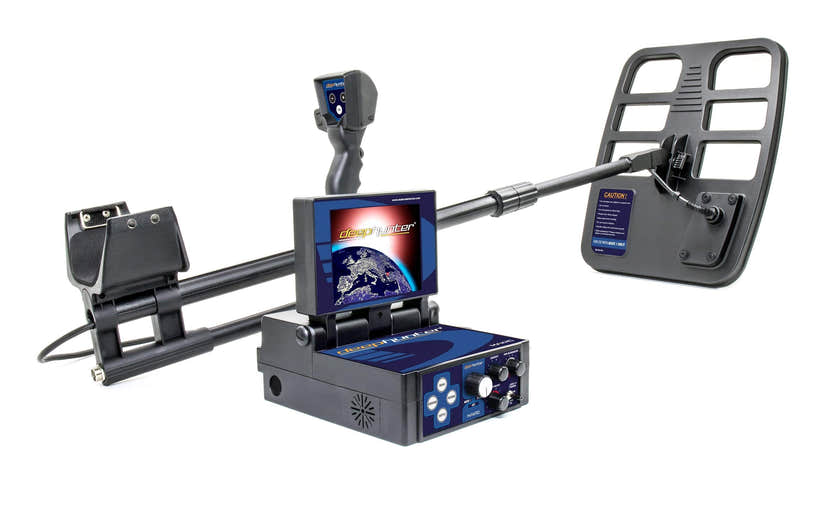

Nokta Deephunter 3D PRO Package
The Nokta Deephunter 3D PRO is a professional deep treasure and cavity detection system designed to handle both deep-search applications and conventional coin and small-target detecting.
Its dual operating system allows the detector to adapt to very different hunting situations. One mode is designed for larger and deeper metal targets and underground cavities, while the second provides faster motion-based searching for coins, jewelry, gold, and other smaller targets.
The PRO Package includes multiple search coils, a dedicated deep-search control unit, headphones, chargers, carrying bags, and other accessories needed for a complete detecting setup.
Two Detection Systems in One
The Deephunter 3D PRO provides two distinct operating modes:
Mode 1 – Deep Search and Visual Analysis
Designed for larger buried metal objects, deeper targets, and underground cavities. This mode provides visual target information, metal classification, depth estimation, and cavity detection.
Mode 2 – Fast Motion Search
Designed for individual coins, jewelry, gold, and other smaller targets using audio target identification and discrimination.
Mode 1 – Deep Search and Visual Target Analysis
Mode 1 is intended for users searching for larger or deeper metallic targets and underground voids.
The visual display provides information related to:
- Metal classification
- Target response
- Estimated target depth
- Graphical target representation
- Cavity or void detection
Metal Identification
The Deephunter analyzes detected metal responses and groups them into several categories, helping the operator evaluate the target before excavation.
Target categories include:
- Gold
- Precious metals
- Non-precious metals
- Steel
Cavity Detection
In addition to metallic targets, the Deephunter 3D PRO is designed to detect underground cavities and structural changes in the ground.
Potential applications include locating:
- Caves
- Cellars
- Tunnels
- Chambers
- Shelters
- Repositories
- Other underground voids
Depth Estimation
The system provides an estimated target depth in centimeters after a target has been analyzed.
Depth estimates should be considered a guide because actual results can vary with target size, orientation, soil conditions, mineralization, search coil, and detector settings.
Graphical Target Response
During searching, Mode 1 provides a visual representation of the target response. This information helps the operator evaluate the strength and characteristics of the detected signal.
Ferrous Rejection
Ferrous rejection allows the user to reduce responses from unwanted iron and other undesirable metal targets, helping focus the search on targets of greater interest.
Mode 2 – Fast Motion Search
Mode 2 is designed for faster searching and smaller targets such as coins, jewelry, gold, and other individual metal objects.
With the C32 32 x 26 cm DD Search Coil, the Deephunter provides motion-based detection with audio target identification.
The larger C47 47 x 39 cm DD Search Coil provides increased ground coverage and is better suited for larger targets.
Three-Tone Audio Identification
Mode 2 uses three audio tones to help distinguish between different target responses.
- Low tone for ferrous targets
- Higher tones for precious and gold-type target responses
This allows the operator to make faster decisions while searching without relying entirely on the visual display.
Ferrous Elimination
Ferrous elimination is also available in Mode 2, allowing the user to reduce responses from unwanted iron and other junk targets.
Designed for Mineralized Ground
Mode 2 includes controls designed to help the detector operate in mineralized ground conditions.
This can be useful in environments such as:
- Wet sand
- Beaches
- Plowed soil
- Iron-contaminated ground
- Mineralized inland sites
Search Coils Included in the PRO Package
T44 44 x 36 cm DD Search Coil
The T44 DD Search Coil is the standard search coil used with the visual Mode 1 system and provides a balance of depth, target response, and ground coverage.
T100 100 x 60 cm DD Deep Search Coil
The large T100 100 x 60 cm DD Search Coil is designed for deep-search applications and larger buried targets.
The T100 system includes its own dedicated control unit and carrying bag.
C32 32 x 26 cm DD Search Coil
The C32 DD Search Coil is designed for Mode 2 motion searching and is well suited for coins, jewelry, gold, and other smaller targets.
C47 47 x 39 cm DD Search Coil
The larger C47 DD Search Coil provides greater ground coverage and improved response to larger targets when using Mode 2.
Key Features
- Dual operating systems in one detector
- Deep-search metal detection
- Coin and small-target detection
- Visual target analysis
- Underground cavity detection
- Target depth estimation
- Metal classification
- Ferrous rejection
- Three-tone audio identification
- Motion and non-motion operation
- Four search coils included in the PRO Package
- Designed for mineralized ground conditions
What’s Included in the Nokta Deephunter 3D PRO Package
- System Box
- Shaft
- T44 44 x 36 cm DD Search Coil
- T100 100 x 60 cm DD Deep Search Coil
- T100 Search Coil Carrying Bag
- C47 47 x 39 cm DD Search Coil with Coil Cover
- C32 32 x 26 cm DD Search Coil with Coil Cover
- System Box Leather Carrying Bag
- Harness
- Connection Cable
- Headphones
- T100 Search Coil Control Unit
- AC Charger
- 14.8V 3300mAh Li-Po Battery
- Car Charger
- User Manual
- Mounting Hardware
- Carrying Bag
Technical Specifications
- Mode 1 Operating Principle: VLF
- Mode 1 Operating Frequency: 12.5 kHz
- Mode 2 Operating Principle: VLF
- Mode 2 Operating Frequency: 17.5 kHz
- Ground Balance: Manual
- Sensitivity Adjustment: Manual
- Stem Length: 85 cm to 135 cm (33.5" to 53")
- Mode 1 Battery Life: Approximately 4 hours
- Mode 2 Battery Life: Approximately 24 hours
- Mode 1 Weight: Approximately 1.4 kg (3 lb)
- Mode 2 Weight: Approximately 0.85 kg (1.9 lb)
- Warranty: 2 Years
- Nokta Part Number: 10000802
The Nokta Deephunter 3D PRO Package is designed for detectorists who want a complete system capable of searching for deep metallic targets, underground cavities, coins, jewelry, and smaller targets without switching between separate detector platforms.
