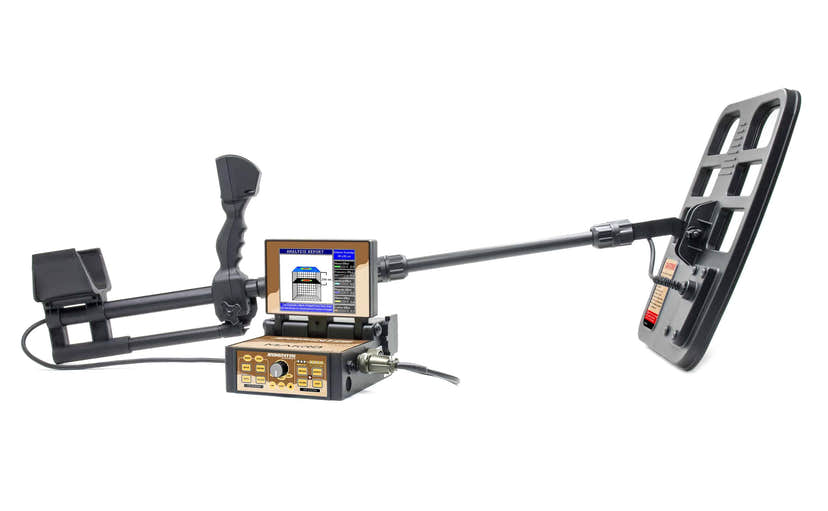

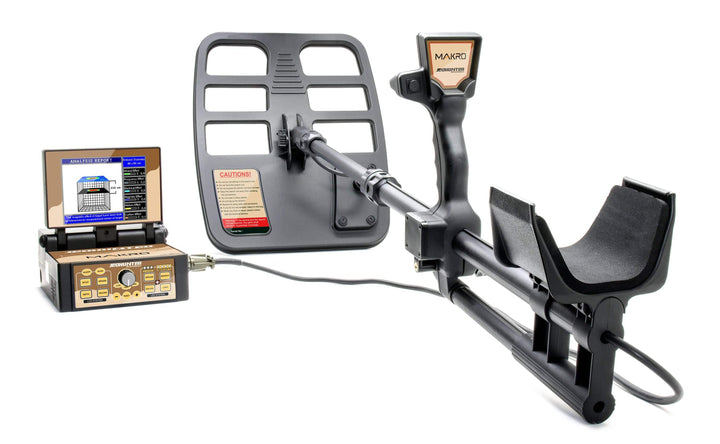

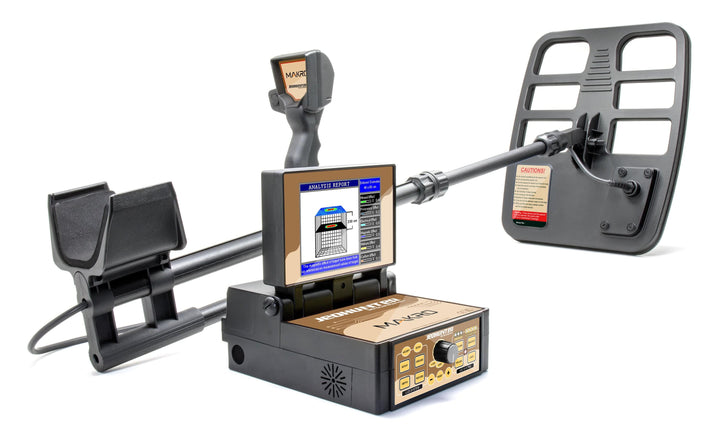

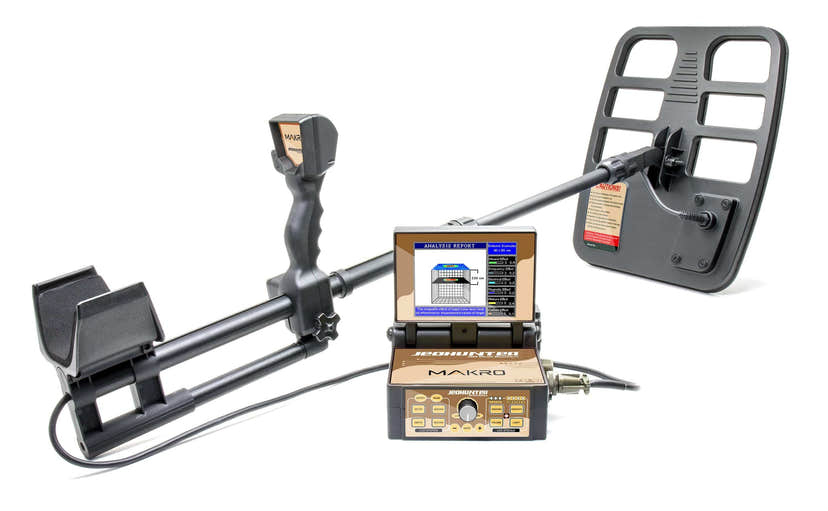

Nokta Jeohunter 3D Dual System
The Nokta Jeohunter 3D Dual System is a professional metal and cavity detection system designed for deep-search applications, target analysis, and underground structure detection.
Unlike a conventional coin detector, the Jeohunter combines metal detection, target discrimination, depth estimation, and cavity detection in a single platform. It is designed for users searching for deeply buried metal objects as well as underground voids such as tunnels, chambers, cellars, caves, and similar structures.
The system includes three search coils, allowing the operator to adapt the detector to different target sizes, search depths, and environments.
Metal Detection and Target Classification
The Jeohunter 3D Dual System analyzes detected metal targets and classifies responses into several categories, including:
- Gold
- Non-ferrous metals
- Iron
- Steel
The system provides visual target information through its graphical display, helping the operator evaluate a target before excavation.
For targets detected in close proximity to one another, the Jeohunter can also provide information indicating the relative response of different metal types.
Cavity and Underground Structure Detection
In addition to metal detection, the Jeohunter is designed to detect underground cavities and voids.
Potential applications include locating:
- Tunnels
- Cellars
- Chambers
- Caves
- Shelters
- Other underground voids
Cavity responses are displayed separately from metal responses, allowing the operator to distinguish between metallic targets and changes in underground structure.
Real-Time Graphical Target Analysis
The Jeohunter features a graphical interface that displays target information as the detector passes over the search area.
The system can provide information related to:
- Target type
- Target response
- Estimated target depth
- Estimated target size
- Metal classification
- Cavity detection
This information gives the user additional data for evaluating a target before deciding whether to excavate.

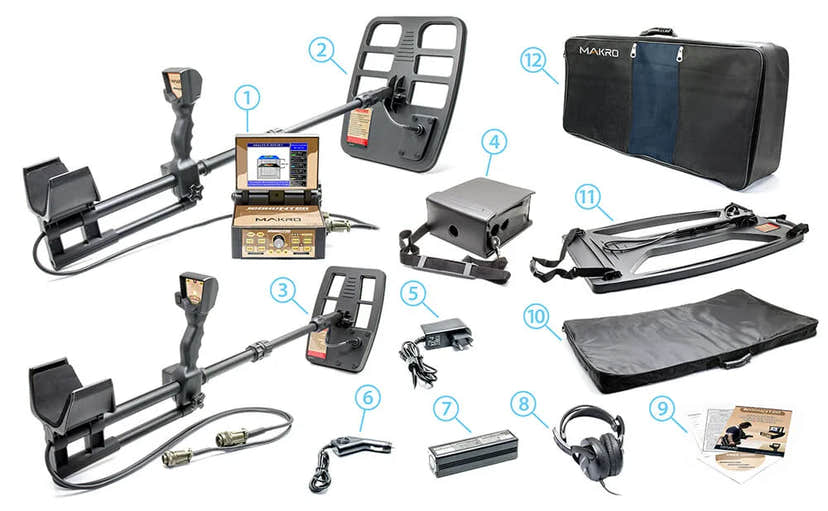

Three Search Coils for Different Applications
100 x 60 cm Deep Search Coil
The large 100 x 60 cm (approximately 39" x 24") Deep Search Coil is intended for larger and deeper targets.
Its large search area allows the operator to cover more ground while reducing sensitivity to very small surface trash such as nails and pull tabs.
It is particularly useful for:
- Larger buried metal objects
- Deep-search applications
- Open terrain
- Cavity detection
- Highly mineralized ground
36 x 44 cm General Search Coil
The 36 x 44 cm (approximately 14" x 17") General Search Coil provides a balance between ground coverage, target sensitivity, and depth.
It is well suited for general-purpose searching where the operator needs more maneuverability than the large deep-search coil provides.
21 x 31.5 cm Small Search Coil
The compact 21 x 31.5 cm (approximately 8.5" x 12") Small Search Coil is designed for more precise searching and tighter locations.
It is useful for:
- Coins and smaller targets
- Shallow searches
- Walls and slopes
- Cellars and confined spaces
- Areas where larger coils are difficult to use

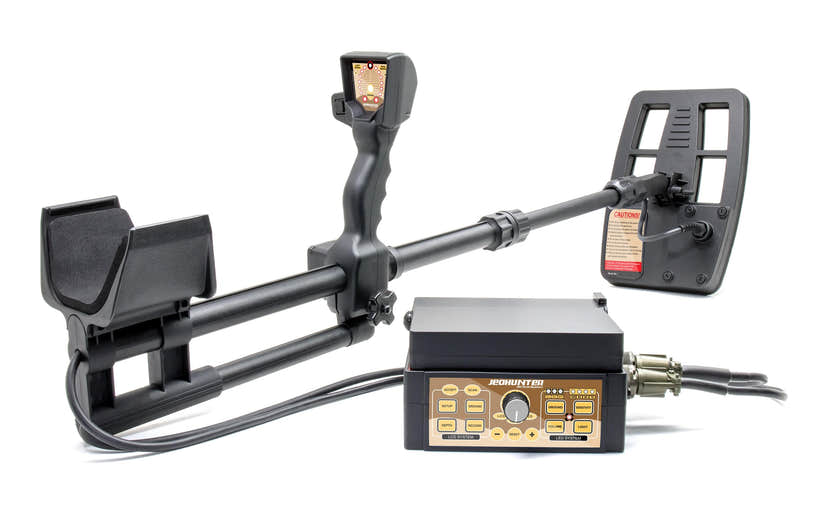

Dual Display System
The Jeohunter combines its main graphical detection system with a practical LED-based search system for the smaller search coil.
The LED display is mounted near the handle and provides separate indications for metal and cavity responses.
Different audio tones also help the user distinguish target responses while searching.
This configuration allows the Jeohunter to handle both:
- Deep-search and large-area investigations
- Faster searches for smaller or shallower targets
Designed for Challenging Ground Conditions
The Jeohunter 3D Dual System is designed to operate in difficult and mineralized ground conditions.
Its combination of multiple search coils, target analysis, discrimination, and cavity detection gives experienced users the flexibility to adapt the detector to a wide variety of search environments.
Key Features
- 3D graphical target analysis
- Metal and cavity detection
- Target depth estimation
- Target size analysis
- Metal classification
- Gold, non-ferrous, iron, and steel identification
- Three search coils included
- Large deep-search coil for bigger and deeper targets
- General-purpose search coil
- Small coil for coins and confined areas
- LED target indication system
- Audio target identification
- Designed for mineralized ground conditions
The Nokta Jeohunter 3D Dual System is intended for detectorists who require more than conventional coin and jewelry detection and want a system capable of analyzing both metallic targets and underground cavities.
