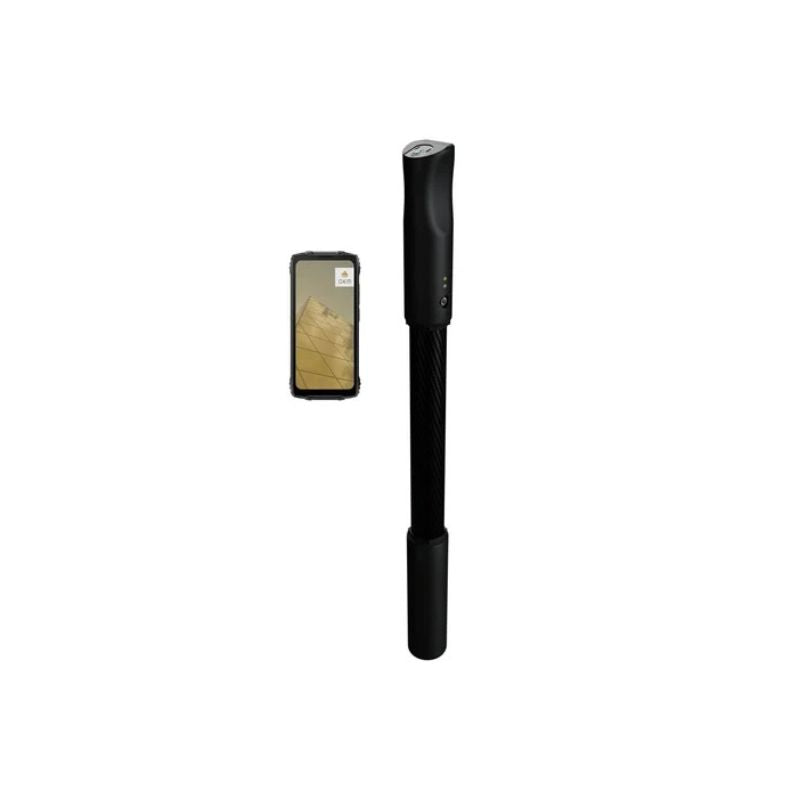

OKM Fusion Light 3D Ground Scanner
The OKM Fusion Light is a compact and easy-to-use 3D ground scanner designed for treasure hunters who want to locate buried objects, hidden caches, cavities, tunnels, and other underground anomalies. It combines advanced OKM scanning technology with simple smartphone operation, making it an excellent entry point into professional 3D ground scanning.
Fusion Light uses two primary operating modes: 3D Ground Scan and Magnetometer. Scan data can be viewed directly on the included Android smartphone and analyzed in greater detail using OKM Visualizer 3D Studio Standard Edition on the included Windows notebook.
Key Features
- 3D Ground Scan: Create graphical scans of underground targets and anomalies.
- Magnetometer: Locate ferrous metal objects and help clear a scan area before performing a detailed ground scan.
- Smartphone Operation: Controlled through the OKM Android App.
- 3D Visualization: Analyze scan results using OKM Visualizer 3D Studio software.
- Wireless Data Transfer: Bluetooth 5.1 connectivity between the detector and mobile device.
- Lightweight Design: The control unit weighs approximately 700 grams.
- Long Battery Life: Approximately 12 hours of operating time under normal conditions.
- Made in Germany: Manufactured by OKM using its specialized ground-scanning technology.
Designed For
- Treasure hunting
- Buried caches and artifacts
- Cavity and tunnel detection
- Archaeological investigation
- Locating ferrous objects and underground anomalies
Operating Modes
- 3D Ground Scan
- Magnetometer
3D Scan Analysis
After completing a scan, the Fusion Light can display the results through the OKM Android App. Scan data can also be transferred to the included Windows notebook and analyzed with Visualizer 3D Studio Standard Edition, allowing the user to study the position, dimensions, and estimated depth characteristics of detected anomalies.
Specifications
- Control Unit Dimensions: 800 × 65 × 65 mm
- Weight: Approx. 700 g
- Battery: 2600 mAh lithium-ion
- Operating Time: Approx. 12 hours
- Charging Time: Approx. 3 hours
- Measurement Resolution: 16 bit
- Sample Rate: 1024 values per second
- Bluetooth: Bluetooth 5.1
- Wireless Range: Approx. 10 m
- Protection Rating: IP40
- Waterproof: No
- Operating Temperature: -10°C to 60°C

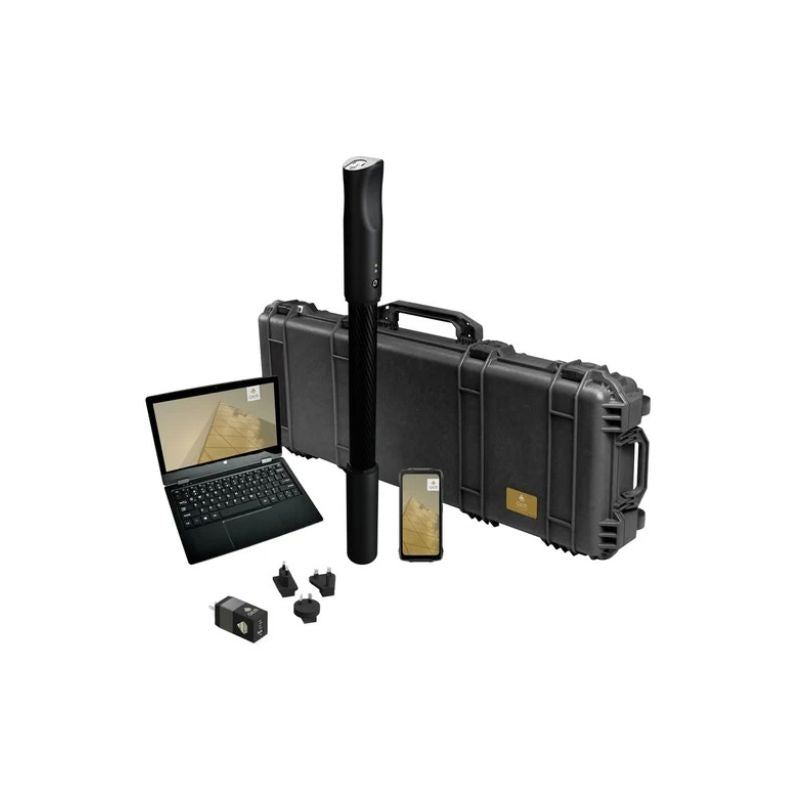

What's Included
- OKM Fusion Light control unit
- Android smartphone with pre-installed OKM App
- Windows notebook with OKM Visualizer 3D Studio Standard Edition
- USB flash drive with Visualizer 3D Studio Standard Edition
- Charger and charging cable
- Travel adapter set
- Waterproof and shock-resistant protector case
- Quick Start Guide
Package contents and specifications may be updated by OKM and can vary by production configuration.
Why Buy From Treasure Coast Metal Detectors?
Treasure Coast Metal Detectors is an authorized OKM dealer offering nationwide shipping and knowledgeable support before and after your purchase. If you need help comparing OKM ground scanners, contact us and we will help you determine which model best matches your detecting goals and budget.
