- Flexible & powerful: Ground Penetrating Radar using an omnidirectional unshielded transmission system to reach maximum depths down to 40 m (132 ft)
- Detection depth: With this technology customers found objects down to 40 m (132 ft) deep

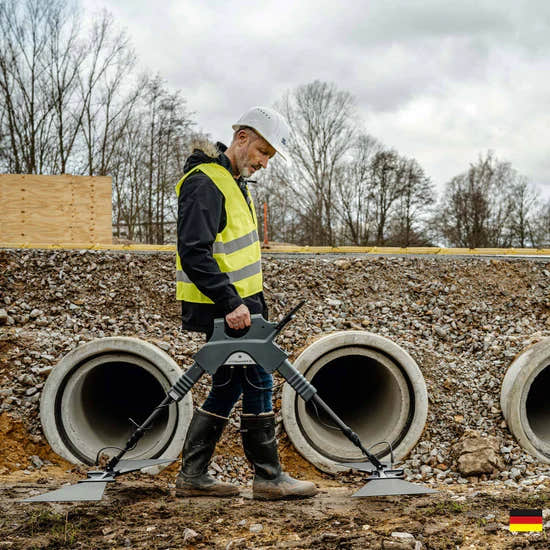

- Use cases: Archaeology, geotechnical engineering, treasure hunting
- Operating modes: Ground Scan, Live Stream
- Detectable objects: Underground objects like pipelines, cavities, cables, conduits tunnels, bunkers and foundation

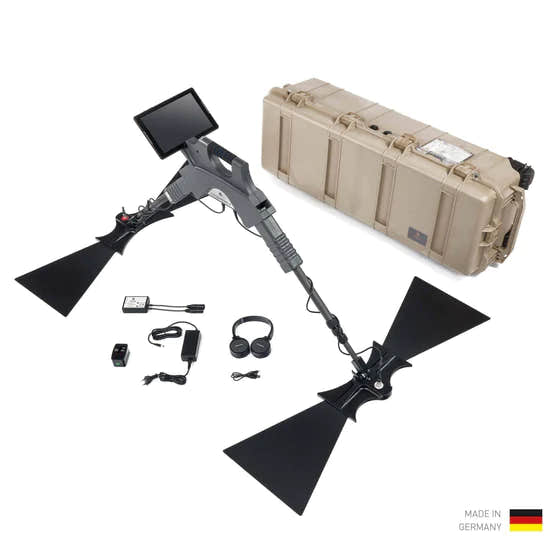

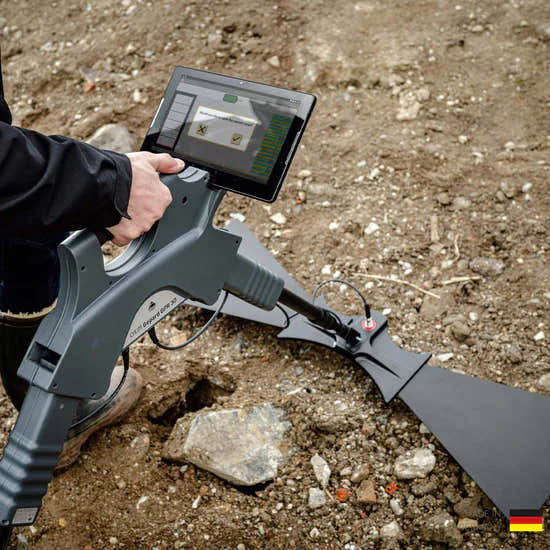

Control Unit
- Dimensions (H x W x D): 450 x 260 x 130 mm
- Weight: approx. 1.6 kg
- Input voltage (max.): 8.4 V DC / 1.0 A
- Operating temperature: –20°C – 55°C
- Storage temperature: –25°C – 60°C
- Waterproof: No
- Operating time: approx. 4 hours
- Air humidity: 5% – 70%
- Feedback: acoustic, visual
- Protection Type: IP 20
- Data Transmission Technology: WiFi, 2.4 GHz
- Transmission Frequency Range: 60 – 300 MHz
- Timing/Sampling Adjustments: 4 Levels
- Complete Cycle Measurements: 9 per second
Telescopic shaft
- Dimensions (H x W x D): 70 x 60 x 590–1630 mm
- Weight: 0.80 kg
- Operating temperature: –20°C – 55°C
- Storage temperature: –25°C – 60°C
- Waterproof: No
- Air humidity: 5% – 70%
- Protection Type: IP 20
- Internal Battery: 7.26 V / 2600 mAh

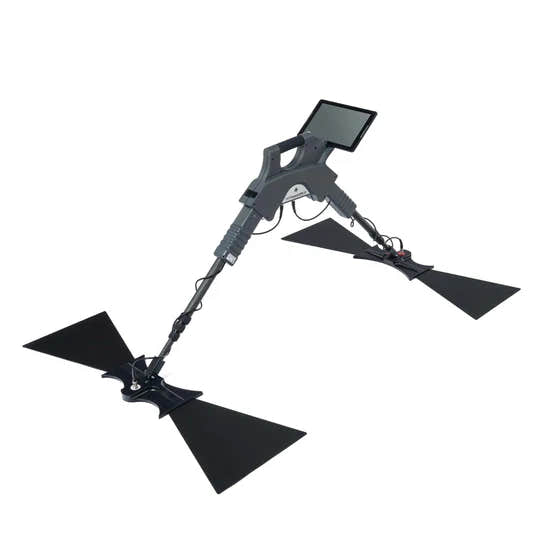

Triangular antenna (unshielded)
- Dimensions (H x W x D): 1010 x 330 x 50 mm
- Weight: 1.50 kg
- Operating temperature: –20°C – 55°C
- Storage temperature: –25°C – 60°C
- Waterproof: No
- Air humidity: 5% – 70%
- Protection Type: IP 20
The technical data are average values. Minor deviations are possible during operation.
